CD500S

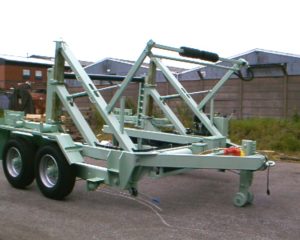

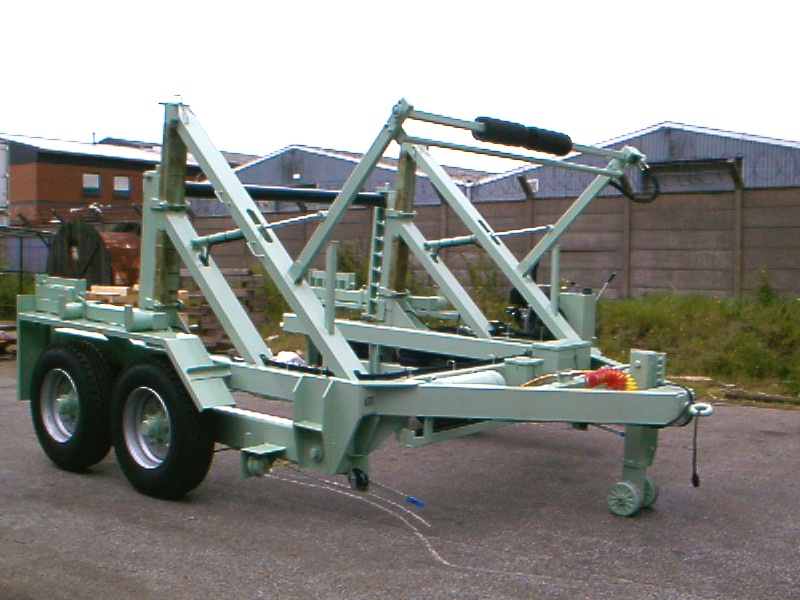

CD500S Cable Drum Trailer

Enquire About this Product

Technical Specification

Axle Type
Twin Axle
Payload (Approx)
20000Kgs
Gross Vehicle Weight
24000Kgs
Maximum Drum Width
2400mm
Drum Diameter
4600mm Max, 2500mm Min
Spindle Diameter
127mm
Tow Eye/Coupling Height Unladen
76/850
Trailer Width
3670mm
Towing Speed
15Kmh
Tyres
315/70Rx22.5
Brake System
2 Line Air
